3 Car with Barn Stair & 3 Car Porte Cochere

3 Car · 31'-0" × 20'-9½" · Porte cochere 20 ft deep

Drawing3BSFPCDimensions per Cervelle drawings

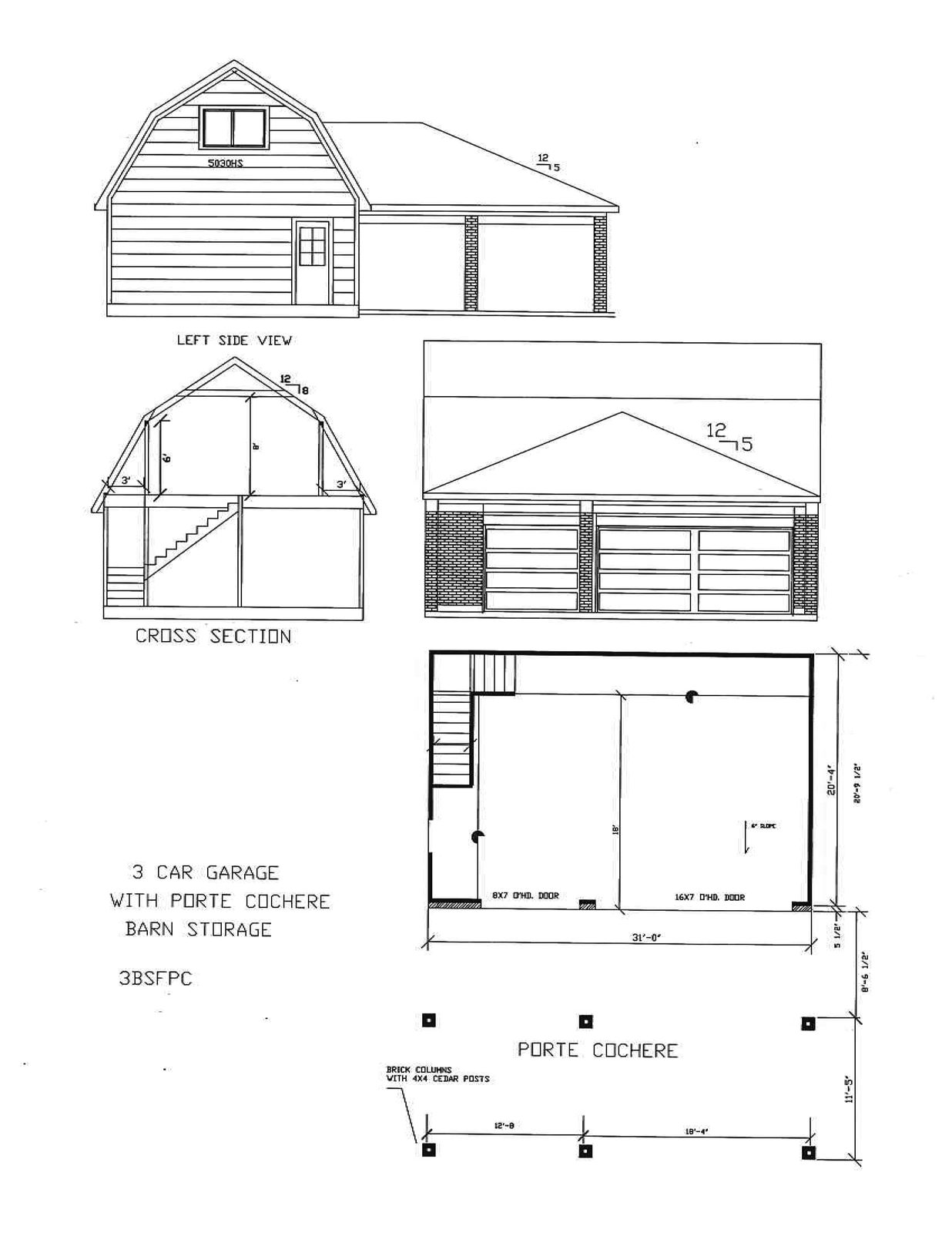

Cervelle 3 Car with Barn Stair & 3 Car Porte Cochere configuration 3BSFPC drawing, 31'-0" × 20'-9½"

View full size ↗

The configuration

Garage Configuration and Storage

Three bays wide with a matching three-car porte cochere, and barn storage above the whole thing.

Dimensions and Door Opening

Garage31'-0" × 20'-9½"

Porte cochere20 ft deep (12'-8" + 18'-4" bays)

Overhead doors8 × 7 and 16 × 7

Barn storage8' at center, 6' at the sides

AccessInterior staircase

Barn Storage and Stair Access

This configuration lists barn storage. Review the drawing, published storage heights and access details above; confirm usable space with sales.

How the Porte Cochere Works

The porte cochere is a covered area for vehicle access, parking or unloading, separate from the enclosed garage. Its published dimensions are 20 ft deep. It does not add an enclosed garage bay.

Verified Home and Plan Pairings

Ask sales which home, plan and homesite can accommodate this configuration. Browse floor plans or current homes to start the conversation.

Good to knowGarage pricing is separate from the plan

Base plan prices don't include the garage configuration or the homesite. Availability depends on the lot.
